COMAS Carbon Fork 20" HS-DS

Description

- New COMAS carbon fiber fork for 20-inch trial bikes.

- New fork layers structure and positioning for improved stability.

- New innner linear reinforcements to increase stiffness and improve performance.

- New lower bearing housing. Direct mount.

- New graphics

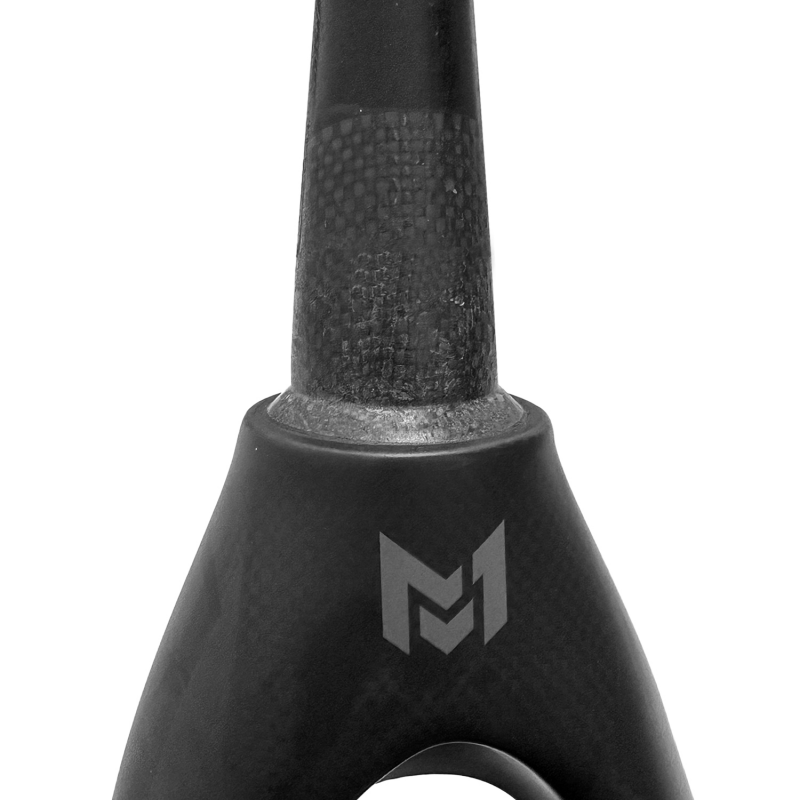

- 185mm-long tapered steerer tube with aluminum tube insert (150mm).

- Mounts for Magura HS rim brakes and PS-type (postmount) disc brakes

- Steerer tube with grooved interior to facilitate spider installation.

- M12 thru-axle, providing extra stiffness and smoothness.

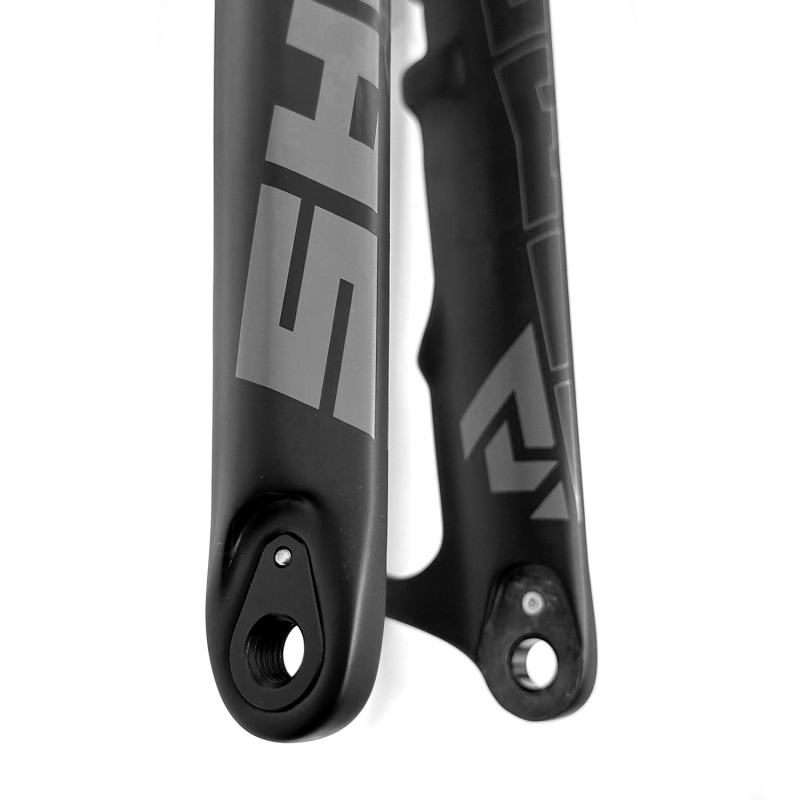

- 7075 aluminum dropouts on both ends with M12 threads to accommodate thru-axles.

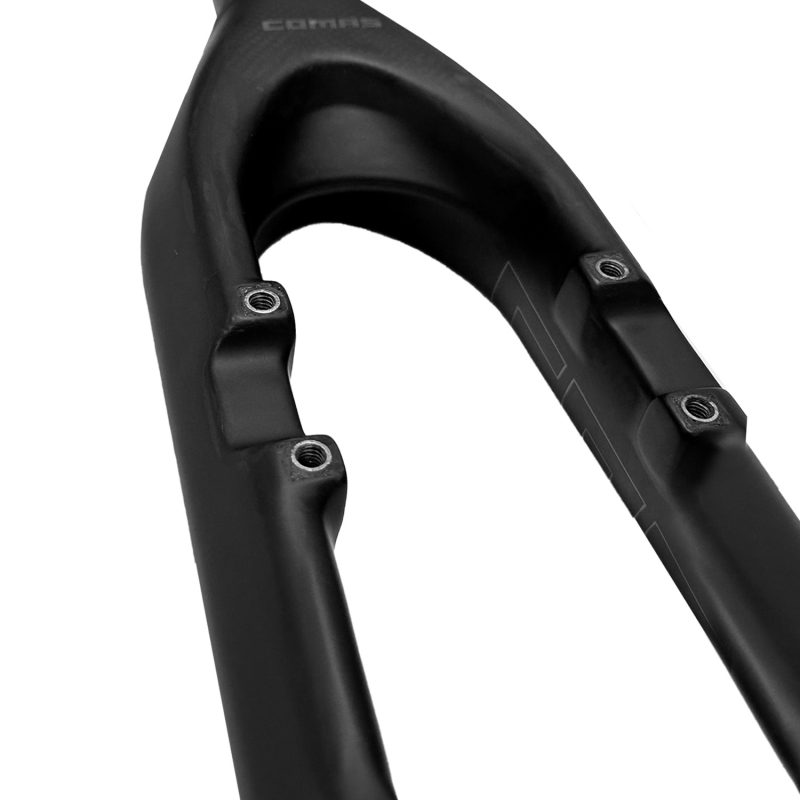

- Mounting points for HS clamps with M6 screws to improve clamping and positioning.

Material
- Carbon fiber layers.  Up to +22 layers.

Sizes
- Length: 370mm
- Offset: 40mm
- Steering tube length: 185mm
- Width: 100mm

Weight
- 595gr (+-10gr)

Additional information
This fork is only compatible with Tapered head tube frames.
These headsets mount 1-1/8" bearings at the top and 1.5" at the bottom.
If your frame is not a type, you can only assembly this fork with a special cup adapter.

NOTE: Fork supplied without clamps, thru-axle or starnut.
