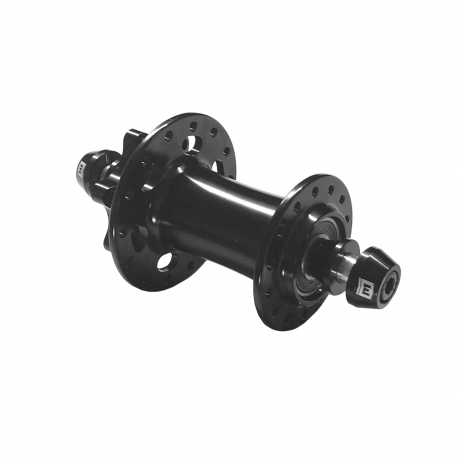

Front Disc Hub Entry

Description
- 100mm front entry range hub for disc brakes.
- Design with a quality CNC machined aluminum 6061-T6.
- Axle design in 7075-T6 aluminum with 10/12mm diameter and internal M6 thread.
- Replaceable sealed bearings that offers a smooth and effective operation.
- Disc support for standard 6-hole IS with M5x0.8 thread
- Includes M6x25mm screws and washers to ensure a perfect fit to the frame.
- 28 holes of 2.5mm to mount spokes type J.
- Spacers on each side for fixing in a 116mm width.
Material
-Body: AL6061-T6
-Axle:  AL7075-T6
Sizes
- Axle: Ø10/12xL110mm
- Internal axle thread: M6x25mm
- 28x Ø2.5mm holes
- Walls Ø67 and Ø54mm
Finish
- Anodized in black color.
Weight
- 155g (+20g additional screws and washers)
