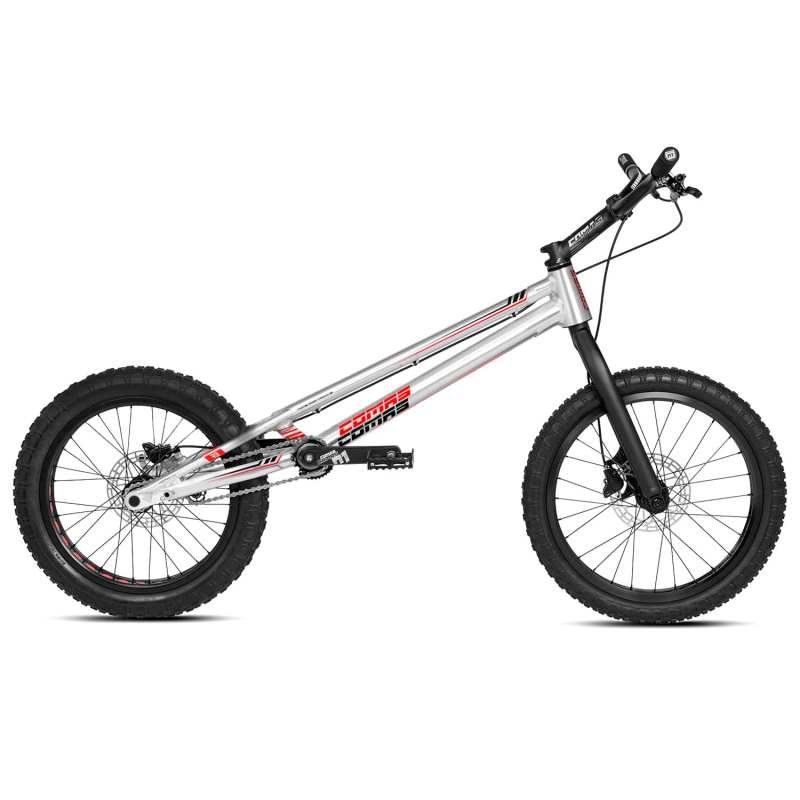

Bicicleta COMAS R3 Pro

R3 PRO MODEL - 1008MM / 970MM / 920MM

CUADRO        20" AL6061-T6. HT 1.5”  CNC dropout. Post-mount. 12mm thrue-axle
HORQUILLA    20" AL6061-T6. CNC dropout. Post-mount.
PROTECTOR    Ultralight CNC 7075-T6
POTENCIA      Forged 3D. One piece. L150/130x20º
CASQUILLO    5mm. Alloy. CNC
DIRECCION     Semi-integrated 1-1/8" to 1.5”, Alloy cups
PUÑOS           Foam. Medium density. 2/4mm.
MANILLAR       7075-T6, 2 THICKNESS. L720mm, 31.8mm, Up 7º, Back 9º, H115mm
FRENOS          Shimano. Hydraulic. Postmount.
DISCOS          160mm StainlessSteel. Special compound & Roughness
RUEDAS          Del 20”x28H W100 Disc / Trs 19”x32H W116 Disc.
CAMARS          Ultralight, 20”x1.75, Th: 0,8mm
PEDALIER        ISIS type. 1.37x24t, W68mm, L123mm
BIELAS           Forged alloy. ISIS type. L160mm, Off33mm
PIÑON LIBRE   18Tx108.9 W17mm
CADENA          Single-speed 1/2”x3/32”
PIÑON TRAS    Fixed trackcog. CNC. AL7075 T6, W12mm, 1.37”x24T
TENSOR          Double 10T pulley. CNC. Ceramic bearings.
EJE TRAS        Thrue axle M12x1.5p. AL6061-T6. L144mm
NEUMATICO    Trial 20”x2.00 / 19”x2.60
PEDALES        Trial Cage, 9/16", Alloy

COLOR           Púlido con adehsivos negros/rojos.

GEOMETRIA 1008
WB: 1008
RC: 350
BB: 85
OFF: 40
HT: 370
WD: 116

GEOMETRIA 970
WB: 970
RC: 350
BB: 85
OFF: 40
HT: 370
WD: 116

GEOMETRIA 920
WB: 920
RC: 327
BB: 55
OFF: 40
HT: 370
WD: 116
