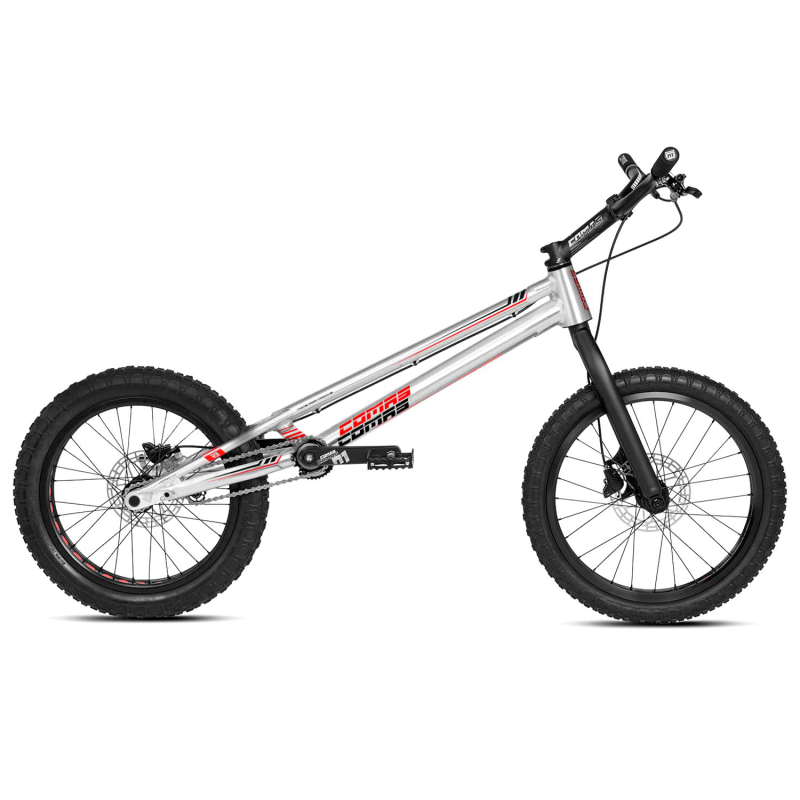

Bike COMAS R3 Factory

R3 FACTORY MODEL - 1008MM / 970MM / 920MM

FRAME             20" AL6061-T6. HT 1.5”  CNC dropout. Post-mount. 12mm thrue-axle
FORK               20" AL6061-T6. CNC dropout. Post-mount.
BASHPLATE      Ultralight CNC 7075-T6
STEM               Forged 3D. One piece. L150x20º
SPACERS          5mm. Alloy. CNC
HEADSET          Semi-integrated 1-1/8" to 1.5”, Alloy cups
GRIPS              Foam. Medium density. 2/4mm.
HANDLEBAR      7075-T6, 2 THICKNESS. L720mm, 31.8mm, Up 7º, Back 9º, H115mm
BRAKES            HOPE Evo X2. Hydraulic. Postmount.
ROTOR             160mm StainlessSteel. Special compound & Roughness
WHEELS           Del 20”x28H W100 Disc / Trs 19”x32H W116 Disc.
INNER TUBE      Ultralight, 20”x1.75, Th: 0,8mm
BB PARTS          ISIS type. 1.37x24t, W68mm, L123mm
CRANKSET        Forged alloy. JIS type. L160mm, Off33mm
FREEWHEEL      18Tx108.9 W17mm
CHAIN              Single-speed 1/2”x3/32”
TRACKCOG        Fixed trackcog. CNC. AL7075 T6, W12mm, 1.37”x24T
TENSIONER       Double 10T pulley. CNC. Ceramic bearings.
REAR AXLE        Thrue axle M12x1.5p. AL6061-T6. L144mm
TIRES               Trial 20”x2.00 / 19”x2.60
PEDALS             Trial Cage, 9/16", Alloy

COLOR              Púlido con adehsivos negros/rojos.

GEOMETRY 1008
WB: 1008
RC: 350
BB: 85
OFF: 40
HT: 370
WD: 116

GEOMETRY 970
WB: 970
RC: 350
BB: 85
OFF: 40
HT: 370
WD: 116

GEOMETRY 920
WB: 920
RC: 327
BB: 55
OFF: 40
HT: 370
WD: 116
